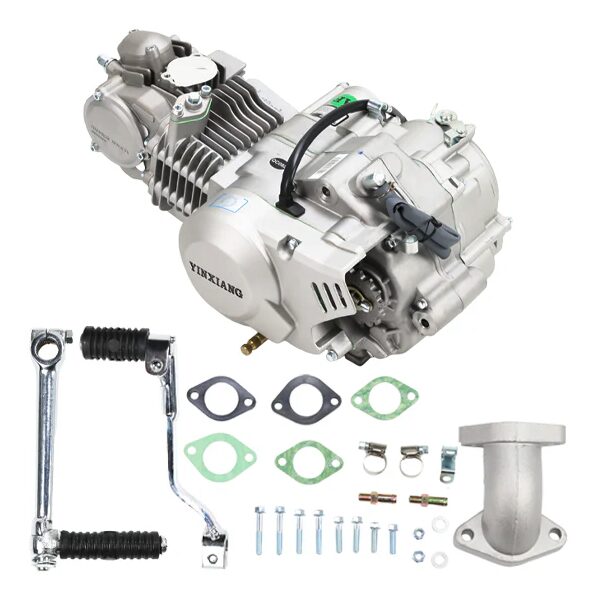

YX 170 engine block, silver, 2V

Complete YX engine block, 169 cc, 12-volt CDI

Takegawa Superhead type

• 4 gears (0-1-2-3-4)
• clutch on the crankshaft
• Kickstart + shift pedal + manifold
• clutch on the gearbox

  Description

  Engine Name: YX 170cc 2-valve Kick-start Only Engine
  Engine Type: Single-cylinder, four-stroke, oil-cooled, horizontal
  Dimensions: 460x300x200
  Net Weight: 20kg
  Max. Power: 11.2/9000 kW/rpm
  Max. Torque: 13.8/7500 N·m/rpm
  Compression ratio: 10.3 : 1
  Bore and stroke: 62 mm × 56 mm
  Ignition type: CDI (contactless ignition)
  Lubrication Type: Pressure Splash
  Minimum fuel consumption: ≤ 354 g/kWh
  Starting Type: Kick Start
  Carburettor model: PZ30 (not included)
  Clutch type: Manual oil-bath multi-plate
  Gearshift Type: Double-stage four-speed gearbox
