Conversion kit from injection to regular CDI ignition euro 5

Conversion kit to convert the Euro 5 EFI injection ( 50 and 125 cc ) to a normal CDI ignition. This kit makes it possible to remove limitations from the EFI system and adjust it to any rpm or even unrestricted.

This kit is plug and play on Skyteam wiring harnesses model 2020 and later with the multi pick up flywheels. This kit includes a replacement single pick up flywheel. If you have a single pick up flywheel you will need to fit the rojo euro 4 kit

Geschikt voor  EFI ( euro 5 ) motorblokken  Skyteam – Bluroc Heritage – Zhenhua ( schema komt niet altijd overeen met de kabelboom , afhankelijk van de versie 5 of 5+ omdat Zh soms andere kleuren gebruikt voor pickup )



The kit includes :

1 X 4 pin D/C CDI

1X micro wiring harness

1X high-voltage coil ( red )

1X flywheel ( single pick up )

Of course, this kit also gives the option of removing the complete EFI system and replacing it with a carburettor.

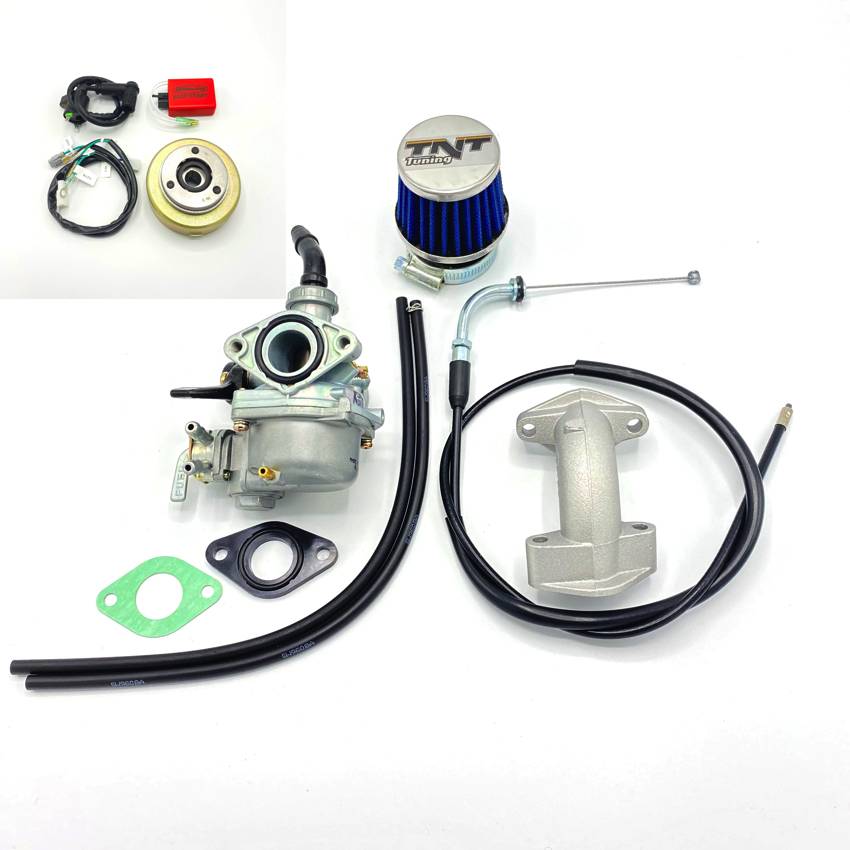

Ook verkrijgbaar als complete kit met carburator ( enkel voor 50cc )

• 17 mm carbu with built-in 2 way fuel tap
• gasket + insulator
• manifold
• throttle cable
• air filter



Pre-wired adapter plugs with custom plugs are provided for Bluroc (Skyteam ) Dax models

Before connecting, please check the colours if they match the wiring harness.

3-pin plug with 1 black/red cable matches the black cable from the wiring harness.

2-pin plug green to green and blue/white to blue/white from the stator.

Please note that the Euro 5 petrol tank does not have a petrol diaphragm connection and so will need to be modified with a Euro 4 or carburettor type tank.



For closed-circuit use only

Electronic components can no longer be exchanged or refunded.
